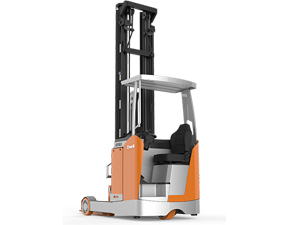

2.0 Ton Electric Reach Truck

Technical Data of 2.0 Ton Electric Reach Truck:

Identification	Product model		FRB2090
	Power supply		Electric
	Load type		Sit-on
	Load capacity	Q kg	2000
	Load center distance	C mm	600
	Front overhang, mast retracted / extended	X mm	208/385
	Wheelbase	Y mm	1520
Weight	Weight (without battery)	kg	3058
	Axle loading, unloaded, load end/drive end	kg	1270/2496
	Axle loading, loaded when mast retracted, load end/drive end	kg	3852/2214
	Axle loading, loaded when mast extended, load end/drive end	kg	5300/766
Wheel	Tyres		Polyurethane
	Tyre size, drive end	mm	Φ343 × 140
	Type size, load end	mm	Φ300 × 100
	Wheels number (x=drive wheel)		1x/2
	Tread drive end	mm	/
	Tread load end	mm	1146
Dimensions	Lowered mast	h1 mm	See the Table
	Free lift	h2 mm
	Lift	h3 mm
	Extended mast	h4 mm
	Overhead guard	h5 mm	2190
	Seat	h6 mm	1000
	Min ground clearance	M mm	80
	Overall length	L1 mm	2535
	Overall	b1 mm	1250
	Fork dimensions	s/e/l mm	50/100/1150
	Forks	b3 mm	200-760
	Reach distance	L4 mm	590/555
	Aisle for pallets 1000 × 1200 ( fork alongside1000)	Ast mm	2829
	Aisle for pallets 800 × 1200 (fork alongside 1200)	Ast mm	2879
	Turning radius	Wa mm	1770
	Fork tilting degree (forward/backward)	°	42770
Performance	Travel speed, loaded/unloaded	km/h	43018
	Lift speed, loaded/unloaded	m/s	0.35/0.4
	Lowering speed, loaded/unloaded	m/s	0.5/0.4
	Max gradeability, loaded/unloaded	%	42863
	Service brake		Electromagnetic
Electric Motor	Drive motor rating	kW	AC 6.0
	Lift motor rating	kW	13
	Battery voltage / nominal capacity	V/Ah	48/600
	Battery weight	kg	1008
Others	Type of drive control		MOSFET control

Mast Type	Lift	with Mast Closed	Free Lift	with Mast Extended
Triple	h3 (mm)	h1 (mm)	h2 (mm)	h4 (mm)
	9000	3726	2872	9854
	8500	3556	2712	9354
	8000	3386	2552	8854
	7500	3216	2392	8354
	7000	3046	2232	7854
	6500	2876	2072	7354
	6000	2706	1912	6854

As a professional manufacturer of 2.0 ton electric reach truck in China, Suzhou Pioneer Material Handling Equipment & Technology Co., Ltd also provide many other high-quality products for clients worldwide, including electric pallet truck, electric stacker, electric tow tractor, scissor lift, aerial order picker, manual warehouse equipment, customized truck, etc. Most of our products have passed the CE certification and ISO9001:2008, and they have been well received in as many as 40 different countries and regions. OEM and ODM cooperation relationships are welcome. If you need 2.0 ton electric reach truck, please contact us freely.
