2.5 Ton Pallet Truck

Description of 2.5 Ton Pallet Truck:

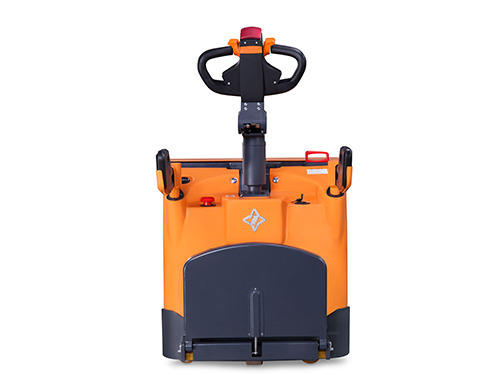

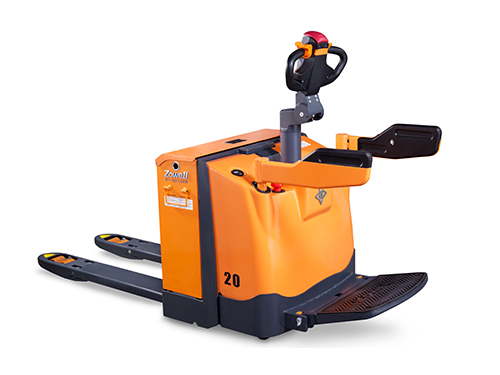

Our Zowell XP25 2.5 ton pallet truck is a compact vehicle with the loading capacity of 2500kg, and it can provide secure and easy horizontal pallet movement. It is especially appropriate for work of medium and high intensity in various industries.

It can work individually or in conjunction with a platform. But for long-distance material transport, working together with a platform is a better choice. Its ergonomic tiller arm has an optimum length, which provides easy control and excellent fork-tip visibility as well as ensure the operator a secure distance from the truck.

Features of 2.5 Ton Pallet Truck:
1. SWISS BUCHER brand Hydraulic pump.
2. Regenerative braking function
3. CURTIS electronic controller
4. Germany Frei handle
5. Emergency reversing device in the handle provides improved operating safety.
6. Emergency power disconnect switch.
7. Braking applied with handle upright and horizontal position, increasing the safety of the truck.
8. Five points structure brings the truck more stability

Technical Parameters of 2.5 Ton Pallet Truck:

identification	1		Product model				XP20	XP25	XP30
	2		Power supply				Electric
	3		Operate type				Standing or Pedestrian
	4		Load capacity			Q kg	2000	2500	3000
	5		Load center			C mm	600	600	600
	6		Wheelbase			Y mm	1300	1300	1300

weight	1		Truck weight (without battery)			kg	475	485	500
	2		Max axle loading , loaded(drive end)			kg	1077	1215	1343
	3		Max axle loading , loaded(load end)			kg	1696	2003	2235

wheel	1		Tires				Polyurethane
	2		Drive wheels size		mm		Ф230×75	Ф230×75	Ф230×75
	3		Loading wheels size		mm		Ф80×70	Ф80×70	Ф80×70
	4		Balancing wheels size		mm		Ф100×40	Ф100×40	Ф100×40
	5		Tread ,front		mm		525	525	525
	6		Tread ,rear		mm		390	390	390

dimensions	1			lowered mast height	h1 mm		1345	1345	1345
	2			Lift height	h3 mm		205	205	205
	3			Forks height, lowered	h5 mm		85	85	85
	4			Overall length	L1 mm		1882	1882	1882
	5			Length to face of forks	L2 mm		732	732	732
	6			Overall width	b1 mm		784	784	784
	7			Fork dimensions	s/e/l mm		180/55/1150	180/55/1150	180/55/1150
	8			Forks width	b3 mm		520/570/680	520/570/680	520/570/680
	9			Minimum ground clearance	M mm		30	30	30
	10			Aisle width	Ast mm		2132	2132	2132
	11			Turning radius	Wa mm		1716	1716	1716

performance		1	Travel speed loaded/unload		Km/h		5.2/6	4.8/5.6	4.8/5.6
		2	Lift speed loaded/unload		mm/s		40/50	40/50	40/50
		3	Lowering speed loaded/unload		mm/s		50/40	50/40	50/40
		4	Max gradeability loaded/unload		%		8/15	8/15	8/15
		5	Service brake				Electromagnetic brake

Electric motor		1		Drive motor rating	kw		1.5	1.5	1.5
		2		Lift motor rating	kw		2.2	2.2	2.2
		3		Battery voltage/capacity	V/Ah		24/210	24/210	24/210
		4		Battery weight	kg		240	240	240

others		1		Type of drive control			Mosfet control
		2		Noise level at operator’s ear	Db(A)		<70

Suzhou Pioneer Material Handling Equipment & Technology Co., Ltd is a professional manufacturer of 2.5 ton pallet truck in China. Besides, we also provide clients with electric stacker, electric reach truck, electric tow tractor, scissor lift, aerial order picker, manual warehouse equipment, customized truck, and more. With high quality and competitive price, our products have been quite popular among customers from as many as 40 countries and regions, and many of our products have obtained CE and ISO9001:2008 certification. If you're interested in our 2.5 ton pallet truck, please contact us freely.
