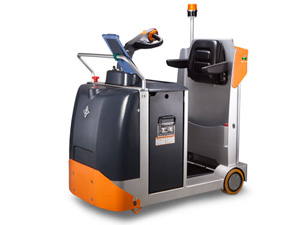

3T, 4T, 4.5T and 5T Electric Towing Tractor with EPS

Description
Our Zowell new 3T, 4T, 4.5T and 5T Electric Towing Tractor with EPS is designed for highly intensive stacking, including pallet transport and stacking in warehouses, industry/manufacturing and retail premises.

Features of 3T, 4T, 4.5T and 5T Electric Towing Tractor with EPS:
1. Both regenerative braking and electromagnetic braking.
2. CURTIS AC electronic controller
3. Germany Frei handle
4. Side battery roll-out system, making it very convenient for battery replacement.
5. Low platform step height.
6. Emergency power disconnect switch.
7.Compact design of the control handlebars ensures that the operator remains well within the truck contours while driving.
8.The adjustable back rest with arms and the full-suspension platform surfaced with a cushioning skidproof mat provide superior comfort and stability on long transport runs and over uneven floor
9. EPS(Electric Power Steering) system provides more smooth steering and flexible controlling.
10. Front folder to keep record paper.
11. Humanized storage area.
12. Operator Presence Sensing system (OPS) that senses if the operator is not in the normal traveling position and interrupts travel power and load-handling operation.
13. 180︒ smooth steering with two-stage speed limit.
14. Forward/backward button for inching controls of trailer coupling.
15. Multi-function display: battery state, hour meter, fault code indicator, etc.
16. CAN-bus technology reduces wiring complexity and increase reliability.
17. Large capacity battery, (up to 450Ah).

4 Ton Tow Tractor

Technical data of 3T, 4T, 4.5T and 5T Electric Towing Tractor with EPS

1

Product model



XT30e

XT40e

XT45e

XT50e

2

Power supply



Electric

Electric

Electric

Electric

3

Operating type



Standing on

Standing on

Standing on

Standing on

4

Tyres



Polyurethane

Polyurethane

Polyurethane

Polyurethane

5

Wheels number (x=drive wheel) front/rear



1x/2

1x/2

1x/2

1x/2

6

Max traction weight

Q(Kg)

3000

4000

4500

5000

7

Rated pulling force (traction capacity) 60min rating

F(N )

750

1000

1125

1250

8

Max pulling force load/unload 5min rating

N

2900

3100

3600

3600

9

Wheelbase(+/-5mm)

y(mm)

1000

1000

1000

1000

10

Drive speed  unloaded/loaded(+/-5%)

km/h

7/5.5

7/5.5

7/5.5

7/5.5

11

Gradeability unloaded/loaded 5min rating

%

6.4/15

4.8/15

4.7/15

4/15

12

Overall length (with hook/without hook)

mm

1585/1428

1585/1428

1585/1428

1585/1428

13

Overall width

mm

800

800

800

800

14

Overall height

mm

1266

1266

1266

1266

15

Height of tiller in drive position(max/min)

mm

1020/1120

1020/1120

1020/1120

1020/1120

16

Thread (front)

mm

0

0

0

0

17

Thread (rear)

mm

695

695

695

695

18

Turning radius(min)

mm

1200

1200

1200

1200

19

Hook height

mm

160/210/260

160/210/260

160/210/260

160/210/260

20

Ground clearance Tread center

mm

69

69

69

69

21

Truck weight (with battery(+/-10%)

kg

700

775

815

865

22

Axle loading,unloaded(front/rear)

kg

376/324

465/310



540/325

23

Sizes of front wheel

mm

Ø 230 x82

Ø 230 x82

Ø 230 x82

Ø 230 x82

24

Sizes of rear wheel

mm

Φ210x85

Φ210x85

Φ210x85

Φ210x85

25

Service brake



Electromagnetic

Electromagnetic

Electromagnetic

Electromagnetic

26

Drive motor rating

kW

AC 2.0

AC 2.0

AC 3.0

AC 3.0

27

Battery voltage / nominal capacity

V/Ah

24/240

24/325

24/350

24/400

28

Battery weight (+/-10%)

Kg

210

270

300

330

29

Type of drive control



MOSFET Control

MOSFET Control

MOSFET Control

MOSFET Control

30

Noise level at operator’s ear

dB(A)

<70

<70

<70

<70

Suzhou Pioneer Material Handling Equipment & Technology Co., Ltd is a professional manufacturer of 3T, 4T, 4.5T and 5T Electric Towing Tractor with EPS in China. Besides, we also provide clients with electric pallet truck, electric stacker, electric reach truck, scissor lift, aerial order picker, manual warehouse equipment, customized truck, and more. With high quality and competitive price, our products have been quite popular among customers from as many as 40 countries and regions, and many of our products have obtained CE and ISO9001:2008 certification. If you're interested in our 3T, 4T, 4.5T and 5T Electric Towing Tractor with EPS, please .contact us freely.
