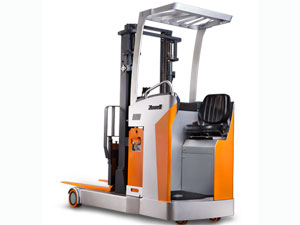

1.5-2 Ton Electric Mini Reach Truck

Description of 1.5-2 Ton Electric Mini Reach Truck
Our Zowell 1.5-2 Ton Electric Mini Reach Truck is a New Mini Reach Truck with EPS. We call it " MINI" as it is a intermediate economic model between reach stacker and reach truck, it is a economic model of reach truck. There is two loading capacity: 1.5ton lifting up to 5.5m and 2.0ton lifting up to 4.0m. And we have two types of this kind of reach truck for customers worldwide: standing-on and sit-down.

Features of 1.5-2 Ton Electric Mini Reach Truck:
1. Advanced AC control system eliminating motor brushes and directional contactors, which significantly reduces maintenance requirements.
2. Multi-function display: battery state, hour meter, fault code indicator, etc.
3. Stepless driving speed control.
4. AC Curtis driving controller.
5.Curtis EPS(Electric Power Steering) system provides more smooth steering and flexible controlling.
6. SWISS BUCHER brand hydraulic pump.
7. Reach function: Fork can extend 580mm
8. Fork can tilt forward / backward for safer load handling.
9.Side battery roll-out system is very convenient for battery replacement, and forward battery roll-out system is very convenient for battery maintenance.

10. 260mm super low stand-on platform for easily step on and off .
11. Built-in pressure relief valve protects the trucks from overloads, increases the reliability.
12. Side shift is optional.
13. Newly-designed overhead guard provides a wider view.
14. USB interface for cell phone charging.
15. Large capacity battery(up to 500Ah).

Technical Parameters of Reach Pallet Stacker

Identification	Product model			FRC15		FRC20
	Power supply			Electric		Electric
	Operating type			Standing on/Sitting on		Standing on/Sitting on
	Load capacity		Q Kg	1500		2000
	Load center distance		C mm	500		500
	Front overhang		X mm	446		446
	Wheelbase		Y mm	1510*		1710
Weight	Weight (without battery)		Kg	1817*		1880
	Axle loading, loaded drive end/load end		Kg	1130/2420*		1120/2779
	Axle loading, unloaded drive end/load end		Kg	1267/779*		1210/700
Wheel	Tyres			Polyurethane		Polyurethane
	Tyre size drive end		mm	Φ230X75		Φ230X75
	Type size load end		mm	Φ210X85		Φ210X85
	Balancing wheel size		mm	Φ125X60		Φ125X60
	Wheels number (x=drive wheel) drive end/load end			1x-2/2		1x-2/2
	Tread width drive end		mm	550		550
	Tread width load end		mm	985		985
Dimensions	Height data is on the bottom — Height data choices
	Lowered mast height		h1 mm	See attached table A		See attached table B
	Free lift		h2 mm
	Lift height		h3 mm
	Extended mast height		h4 mm
	Overhead guard height		h5 mm	2162		2162
	Ground clearance	Platform	h6 mm	267(Standing on) / 570(Sitting on)		267(Standing on) / 570(Sitting on)
	Min ground clearance Chasis		M2 mm	55		55
	Overall length		L1 mm	2290*		2490
	Overall width		b1 mm	1090		1090
	Length to face of forks		L2 mm	1220		1220
	Length of chassis		L3 mm	1780*		1980
	Fork dimensions (Forging)		s/e/l mm	100/35/1070		100/40/1070
	Forks width		b3 mm	200-730		200-730
	Reach length		L4 mm	580		580
	Aisle width for pallets 1000x1200 ( fork along side1000)		Ast mm	2480*		2680
	Aisle width for pallets 800x1200 (fork along side 1200)		Ast mm	2610*		2810
	Turning radius		Wa mm	1700*		1900
	Inside width between the guides		b2 mm	772		772
Performance	Travel speed loaded/unloaded		km/h	6.5/7.5		6.5/7.5
	Lift speed loaded/unloaded		mm/s	100/135		100/135
	Lowering speed loaded/unloaded		mm/s	283/128		283/128
	Max gradeability loaded/unloaded		%	5/8		5/8
	Fork tilting degree (forward/backward)		a/b︒	3/5		3/5
	Service brake			Electromagnetic		Electromagnetic
Electric Motor	Drive motor rating		kW	AC 2.0		AC 2.0
	Lift motor rating		kW	3.0		3.0
	Battery voltage / nominal capacity		V/Ah	24/240、280		24/240、280
	Battery weight		Kg	240、260		240、260
Others	Type of drive control			MOSFET Control		MOSFET Control
	Noise level at operator’s ear		dB(A)	<70		<70
Remark: The data marked with * refer to FRC15 series with lifting height under 4800mm(including 4800mm), if the lifting height of FRC15 series is over 5000mm(including 5000mm). the relevant data refer to FRC20 series

Table A (Height Data Choices for FRC15)
Mast type		Lift		Height with mast closed	Free Lift		Height with mast Extended
		h3 (mm)		h1 (mm)	h2 (mm)		h4 (mm)
Single		1600		2035	1059		2541
Dual		2500		1780	85		3441
Dual		3000		2030	85		3941
Dual		3500		2280	85		4441
Dual		4000		2580	85		4941
Triple		4500		2066	1125		5441
Triple		4800		2166	1225		5741
Triple		5000		2236	1285		5941
Triple		5500		2416	1800		6441

Table B (Height Data Choices for FRC20)
Mast type		Lift		Height with mast closed	Free Lift		Height with mast Extended
		h3 (mm)		h1 (mm)	h2 (mm)		h4 (mm)
Single		1600		2078	1101		2537
Dual		2500		1839	90		3437
Dual		3000		2089	90		3937
Dual		3500		2339	90		4537
Dual		4000		2589	90		4937

As a professional manufacturer of 1.5-2 Ton Electric Mini Reach Truck in China, Suzhou Pioneer Material Handling Equipment & Technology Co., Ltd also provide many other high-quality products for clients worldwide, including electric pallet truck, electric stacker, electric tow tractor, scissor lift, aerial order picker, manual warehouse equipment, customized truck, etc. Most of our products have passed the CE certification and ISO9001:2008, and they have been well received in as many as 40 different countries and regions. OEM and ODM cooperation relationships are welcome. If you need 1.5-2 Ton Electric Mini Reach Truck, please contact us freely.
