Electric Forklift

Introduction of Electric Forklift
ZOWELL electric forklift is a compact and powered material handling equipment combining pallet transport and stacking function together. Its loading capacity is 1000 kg, 1500 kg and 2000 kg. The maximum lifting height is 5.5 m. This forklift truck is suitable for both single faced pallet and double faced pallet. It is extensively used in warehouses, manufacturing industry and retail premises. Our electric forklifts are available with or without platform. For longer distance material transport, a platform is usually needed.

Features of Electric Forklift
1. Built-in pressure relief valve protects this forklift truck from overloads and increases reliability.
2. It adopts Swiss BUCHER brand or Italy HYDRAPP hydraulic pump, CURTIS electronic controller and Germany FREI handle.
3. Our electric forklifts use Germany Mannstaedt forklift profile for mast building.
4. The side gate and the battery cover are openable. Battery can be removed from the side, making it very convenient to replace and maintain batteries.
5. This forklift truck has regenerative braking function and adopts battery side extraction.
6. Emergency reversing device in the handle provides improved operating safety.
7. Zowell electric forklift is configured with emergency power disconnect switch.
8. The mast and the frame are dividable and exchangeable.
9. Braking applied with handle upright and horizontal position increases the safety of this forklift truck.

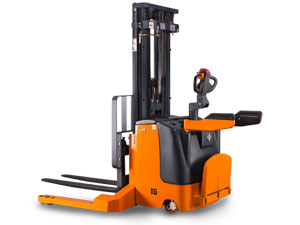

Electric Forklift

Technical Parameters of Electric Forklift

Identification Product Model   XEK10A XEK10B XEK15A XEK15B XEK20A XEK20B
Power Supply   Electric Electric Electric Electric Electric Electric
Operating Type   Standing Pedestrian Standing Pedestrian Standing Pedestrian
Load Capacity Q  Kg 1000 1000 1500 1500 2000 2000
Load Center C mm 600 600 600 600 600 600
Wheelbase Y mm 1280 1280 1340 1340 1372 1372
Weight Weight (Without Battery) Kg 700 680 781 761 1050 1030
Max. Axle Loading, Loaded (Drive End) Kg 736 728 911 903 1164 1157
Max. Axle Loading, Loaded (Load End) Kg 1164 1152 1620 1607 2136 2123
Wheel Tyres   Polyurethane
Driving Wheel Size mm Φ250 × 80 Φ250 × 80 Φ250 × 80 Φ250 × 80 Φ230 × 75 Φ230 × 75
Loading Wheel Size mm Φ80 × 70 Φ80×70 Φ80 × 70 Φ80 × 70 Φ80 × 70 Φ80 × 70
Balancing Wheel Size mm Φ125 × 50 Φ125 × 50 Φ125 × 50 Φ125 × 50 Φ150 × 60 Φ150 × 60
Tread, Drive End mm 690 690 690 690 800 800
Tread, Load End mm 1390 1390 1390 1390 1390 1390
Dimensions Lowered Mast Height   h1 mm 1750 1750 1750 1750 1805 1805
Free Lift h2 mm / / / / /
Lift Height h3 mm 2500 2500 2500 2500 2500 2500
Extended Mast Height h4 mm 2956 2956 2956 2956 3020 3020
Forks Height, Lowered h5 mm 35 35 40 40 40 40
Overall Length L1 mm 1950 1890 2070 2010 2145 2085
Length to Face of Forks L2 mm 797 737 925 865 956 896
Inside Width at the End of Leg b 2 mm 1270 1270 1510 1510 1270 1270
Overall Width b1 mm 1510 1510 1270 1270 1510 1510
Fork Dimensions s/e/l mm 100/35/1070 100/35/1070
Forks Width b3 mm 200-800
Min. Ground Clearance m  mm 30 30 30 30 30 30
Aisle Width Ast mm 2305 2220 2430 2340 2499 2394
Turning Radius Wa mm 1545 1460 1610 1520 1685 1580
Performance Travel Speed  Loaded/Unloaded km/h 5.2/6 4/5 5.2/6 4/5 5.2/6 4/5
Lift Speed  Loaded/Unloaded mm/s 90/120 90/120 90/120 90/120 90/130 90/130
Lowering Speed Loaded/Unloaded mm/s 125/80 125/80 125/80 125/80 140/100 140/100
Max. Gradeability Loaded/Unloaded % 5/8 5/8 5/8 5/8 5/8 5/8
Service Brake   Electromagnetic
Electric Motor Drive Motor Rating kW 1.2 (DC), 1.5 (AC) 1.2 (DC), 1.5 (AC) 1.2 (DC), 1.5 (AC)
Lift Motor Rating kW 2.2/3.0 2.2/3.0 3.0
Battery Voltage / Nominal Capacity V/Ah 24/180 (210) 24/210 (240-280) 24/240 (280)
Battery Weight Kg 210 (230) 230 (250-280) 250 (280)
Others Type of Drive Control   MOSFET Control
Noise Level at Operator’s Ear dB(A) < 70

Height Data

Mast Type Lift h3 (mm) Height with Mast Closed   h1 (mm) Free Lift h2 (mm) Height with Mast Extended  h4 (mm)
XEK10/XEK15/XEK20 XEK10/XEK15 XEK20 XEK10/XEK15 XEK20 XEK10/XEK15 XEK20
Single 1600 1980 2055 1600 1600 1980 2055
Dual 2500 1750 1805 / / 2956 3020
Dual 3000 2000 2055 / / 3465 3520
Dual 3500 2250 2305 / / 3965 4020
Dual 4000 2500 2555 / / 4465 4500
Triple 4500 2055 2055 1490 1490 4979 5067
Triple 4800 2155 2155 1590 1590 5279 5367
Triple 5000 2215 2215 1670 1670 5479 5547
Triple 5500 2385 2375 1830 1850 5979 6027

Suzhou Pioneer Material Handling Equipment & Technology Co., Ltd is a professional manufacturer and supplier of electric forklifts in China. In addition to this forklift truck, we also provide clients with electric pallet truck, electric stacker, electric reach truck, scissor lift, aerial order picker, manual warehouse equipment and customized truck for sale. With high quality and competitive price, our products have been quite popular among customers from 40 countries and regions, and our electric forklifts have obtained CE and ISO9001: 2008 certifications. If you’re interested in our forklift trucks, please contact us freely.
