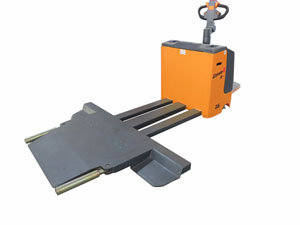

Auto Mover

Description of Auto Mover
Auto mover is a magical electric car mover. It is with the traction capacity of 2500,3500 kg and with small turning radius. This product has simple design but plays a great role in moving automobile for car 4s shop, car manufacturer, car dealer, and so on. One person can easily move vehicles in a flexible and safe way. There is no need to enter the automobile. Just drive the auto mover to the position against the tyres of the automobile, touch the button on the handle and the moving task will be finished. With ZOWELL electric car mover, automobile can be moved without disengaging the gearbox. During the moving process, there is no harmful exhaust emission and no engine noise.

Features of Auto Mover
1. Our company has over 15 years’ production experience of auto movers. We can provide durable and high quality electric car movers to our customers.
2. It adopts CURTIS electronic controller, Germany FREI handle and Swiss BUCHER brand hydraulic pump.
3. Zowell electric tow tractors have passed CE and ISO9001: 2008 certifications and they have been well received by clients from 40 different countries and regions.
4. This electric car mover or auto mover has a compact design. It is easy and safe to move automobiles.

Technical Parameter of Auto Mover

Identification	Product model		XTD25	XTD35
	Power supply		Electric
	Operating type		Standing
	Rated traction capacity	Q Kg	2500	3500
	Truck weight(without battery)	Kg	670
Wheel	Tyres		Polyurethane
	Tyre size drive end	mm	Φ250*80
	Type size load end	mm	Φ75*45
	Balancing wheel size	mm	Φ125*50
	Wheels number (x=drive wheel) Front/Rear		1x-2/3
Dimensions	Overall length	mm	2540
	Overall width	mm	1850
	Overall height(tiller in drive position)	mm	1441
	Turning radius	Wa mm	1879
Performance	Travel speed loaded/unloaded	km/h	3 /4 km/h
	Brake system		Electromagnetic
Electric Motor	Drive motor rating	kW	1.2
	Lift motor rating	kW	2.2
	Battery voltage / nominal capacity	V/Ah	24V/210AH	24V/240AH
	Battery weight	Kg	180	210
	Charger		24V/30A
Others	Type of drive control		MOSFET Control
	Noise level at operator’s ear	dB(A)	<70

As a professional manufacturer of auto movers, Suzhou Pioneer Material Handling Equipment & Technology Co., Ltd also supplies many other high-quality products for customers, such as electric stacker, electric reach truck, scissor lift, aerial order picker, manual warehouse equipment, customized truck, etc. We have a professional technical team, some of who have decades of working experience and predominant R&D ability. Our electric car movers have been exported to 40 different countries and regions. OEM and ODM cooperation relationships are welcome. If you need auto mover, please contact us freely.
