Reach Fork Truck

Description of Reach Fork Truck
Reach fork truck is also called reach forklift. It is a multi-functional mast moving reach truck. This truck is with the loading capacity of 1500 kg or 2000 kg. It is specially designed for medium to highly intensive pallet transport and stacking in warehouses, manufacturing industry and retail premises. This product can be suitable for both single faced pallet and double faced pallet. The reach truck is extensively used in factory workshop, warehouse, logistics center and distribution center, port, station, airport, goods yard, and so on.

Features of Reach Fork Truck
1. This reach forklift adopts Swiss BUCHER brand or Italy HYDRAPP hydraulic pump, CURTIS electronic controller and Germany FREI handle.
2. Zowell reach truck enjoys the reach function. Its fork can extend up to 580 mm.
3. Fork can tilt forward or backward for safer load handling.
4. Our reach forklifts use Germany Mannstaedt forklift profile for mast building.
5. This product possesses regenerative braking function and adopts battery side extraction.
6. Zowell reach truck is installed with emergency reversing device in the handle and emergency power disconnect switch.

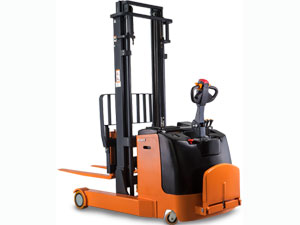

Reach Fork Truck

Technical Parameters of Reach Fork Truck

Identification Product Model   XR15 XR20
Power Supply   Electric
Operating Type   Standing
Load Capacity Q   kg 1500 2000
Load Center C   mm 500
Wheelbase Y   mm 1390 1590
Weight Truck Weight (Without Battery) kg 1700 1780
Max. Axle Loading, Loaded (Drive End) kg 1338 1520
Max. Axle Loading, Loaded (Load End) kg 2112 2230
Wheel Tyres   Polyurethane
Driving Wheels Size mm Ф230 × 75
Loading Wheels Size mm Ф210 × 85
Balance Wheels Size mm Ф125 × 60
Tread, Drive End mm 740
Tread, Load End mm 985
Dimensions Lowered Mast Height h1  mm 1780
Free Lift h2  mm 90
Lift Height h3  mm 2500
Extended Mast Height h4  mm 3440
Forks Height, Lowered h5/s mm 35
Overall Length L1  mm 2090 2290
Length to Face of Forks L2  mm 1185
Overall Width b1  mm 1090
Fork Dimensions s/e/l mm 100/35/1070
Forks Width b3  mm 200-720
Reach Length L3  mm 580
Min. Ground Clearance m   mm 55
Aisle Width Ast  mm 2610 2810
Turning Radius Wa  mm 1656 1756
Performance Travel Speed     Loaded/Unloaded km/h 4.8/5.6
Lift Speed        Loaded/Unloaded m/s 90/120
Lowering Speed    Loaded/Unloaded m/s 125/80
Max. Gradeability  Loaded/Unloaded % 5/8
Service Brake   Electromagnetic brake
Electric Motor Drive Motor Rating kW 1.2 (DC), 1.5 (AC)
Lift Motor Rating kW 3.0
Battery Voltage/Capacity V/Ah 24/240 (280)
Battery Weight kg 250 (280)
Other Type of Drive Control   MOSFET control
Noise Level at Operator’s Ear dB(A) < 70

Height Data Choices

Mast Type Lift h3 (mm) Height with Mast Closed h1 (mm) Free Lift h2 (mm) Height with Mast Extended h4 (mm)
Single 1600 2030 1000 2540
Dual 2500 1780 90 3440
Dual 3000 2030 90 3940
Dual 3500 2280 90 4440
Dual 4000 2590 90 4940
Triple 4500 2060 1500 5340
Triple 4800 2160 1600 5640
Triple 5000 2230 1660 5840
Triple 5500 2400 1820 6340

Suzhou Pioneer Material Handling Equipment & Technology Co., Ltd is a professional manufacturer of reach trucks in China. In addition to this reach forklift, we also provide clients with electric pallet truck, electric stacker, electric forklift, scissor lift, aerial order picker, manual warehouse equipment and customized truck for sale. With high quality and competitive price, our reach trucks have been quite popular among customers from as many as 40 countries and regions. Our products have obtained CE and ISO9001: 2008 certifications. If you’re interested in our reach forklifts, please contact us freely.
